Cutting Car

Cutting Car
Request a quote

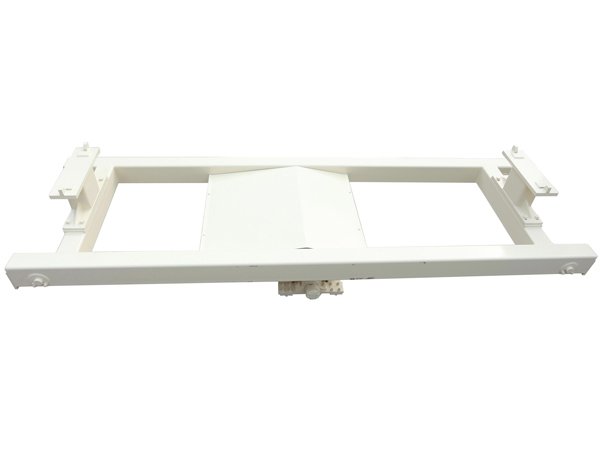

The AAC cutting car system works around the cutting station. It consists of a cutting car, pinion and rack moving rail. In the cutting section of the AAC production line, this cutting equipment can convey the green cake and the side plate from the turning hoist to the tilting table. Thus the cutting duration can be shortened and the cake can be kept stable during cutting.

The two cutting car exchanging system includes an additional cutting car and a hydraulic lifting device. To be specific, after the first cutting car delivers the green cake to the vertical cutting machine, the hydraulic lift device will lift the cake and side plate for cutting. During the cutting, the first car leaves for carrying the next cake, while the second cutting car comes to convey the processed cake to the next processing station. In this way, we increase the whole cutting speed and the final capacity.

Related Equipment in This Section
Other Products
    1. Hardening Car
    2. Autoclave CartThe hardening car, located at the autoclaving section, is used for the material conveying in the AAC production line.
    1. Autoclave
    2. AutoclaveAutoclave is used for the steam curing of cakes in order to give the blocks/panels enough strength.
    1. Auto-mobile Bridge
    2. Auto-mobile BridgeThe bridge trolley at the front and rear of the autoclave is kind of a bridge that overlaps the inner track of autoclave and rail...

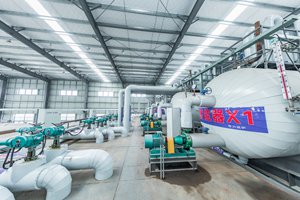

    1. Automatic Gas Distribution and Residual Gas Recovery System
