Cutting Section

The pre-cured concrete block in the mould will be cut into pieces as needed by the AAC cutting machine. The block appearance is largely affected by the performance of cutting machines. Due to the effective work by the subsequent machines like tongue and groove milling device, vacuum suction hood, and tilting table, each block will get 100% ready for autoclaving.

    1. Cross Cutting Machine
    2. Cross Cutting MachineFollowed by horizontal cutting, it is cross cutting area. The cake will be cut in vertical as required value. As the core equipment in an AAC production line...Read More
    1. Vertical Cutting Machine
    2. Vertical Cutting MachineAfter side cutting area, it is horizontal cutting. The horizontal cutting machine will cut the cake into several layers according to the set value. Read More
    1. Cutting Car
    2. Cutting CarThe AAC cutting car system works around the cutting station. It consists of a cutting car, pinion and rack moving rail. In the cutting section...Read More
    1. Tongue and Groove Milling Device
    2. Tongue and Groove Milling DeviceCutting cart carries side plate and cake to the tongue & groove area, to cutting the cake both two sides. Generally...Read More
    1. Vacuum Suction Hood
    2. Vacuum Suction HoodThe vacuum suction hood is used to clean the waste produced during the AAC production. It is mounted on the vertical cutting machine...Read More
    1. Tiling Hoister
    2. Tiling HoisterAfter pre-curing, the mould will be transferred to tiling area. The hoister should grasp mould to rotate it with 90 degrees, then the clamping arm controlled...Read More
    1. Top and Bottom Cleaning System
    2. Top and Bottom Cleaning SystemAfter cutting processing, the waste material retained at the bottom or top of the cake should be recycled into waste pulp...Read More
Tags
AAC cutting machine AAC cutting equipment AAC production equipment tilting table

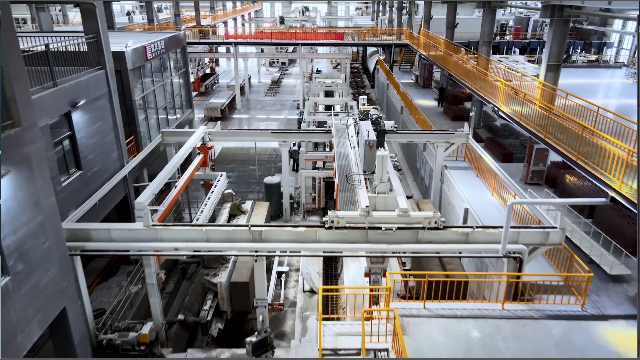

Video
