Mold and Side Plate

Mould
Mould

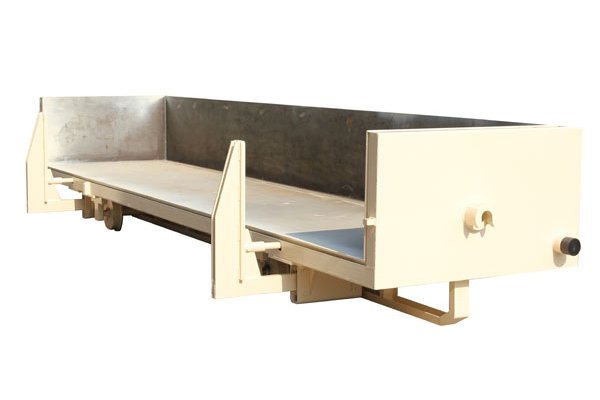

The mould is a recyclable part for AAC production line. Together with side plate, the AAC block mould or AAC panel mould is used for holding the slurry material from the pre-curing section to the cutting section.

The needed type and quantity of the mould depend on the expected annual production capacity. Our mould consists of steel channel and steel plate, so it is strong and durable. Forging wheels are available at the bottom. Sealing strips are also fixed to avoid the leakage of the poured material.

Request a quote
Side Plate
Side Plate

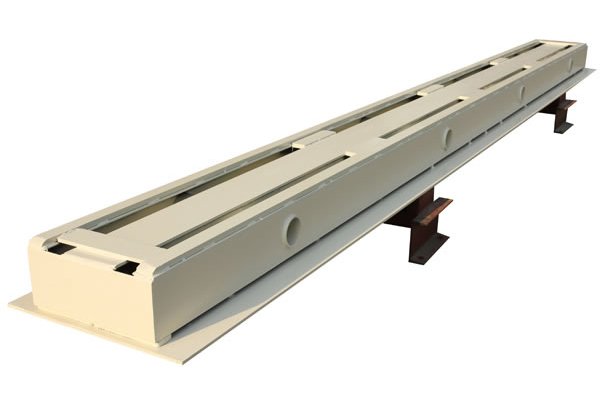

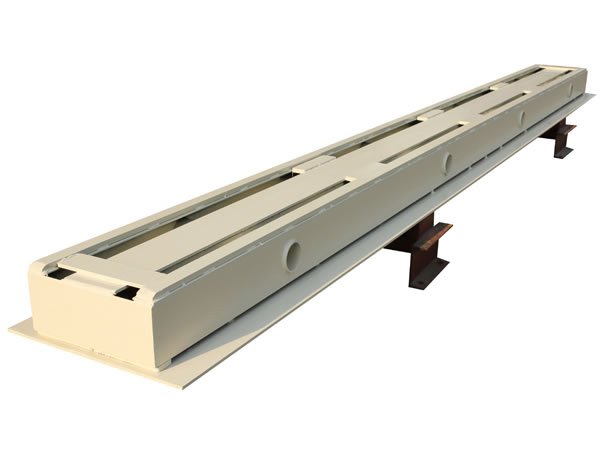

Side plate, working together with mould, is a necessary part for an AAC production line. After de-moulding, the side plate carries the green cake to cutting, grouping, autoclaving and packaging. Our side plate is welded by U channel steel, H channel steel, steel pipe and steel plate. The structural performance is excellent. After several years of use, limited deformation will be observed.

Request a quote
